Spesifikasi & Fitur Total Station SOKKIA IM 105

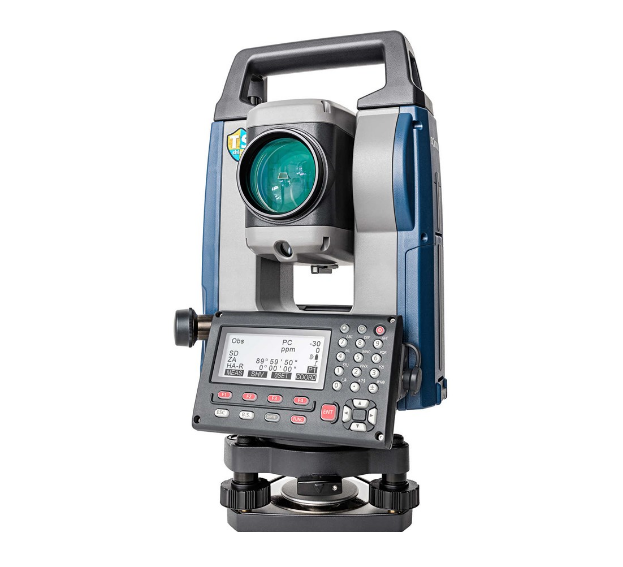

Sokkia IM 105 Total Station – (Intelligent Measurement Total Station) incorporates all the features you need at a cost-efficient price. It will handle your most demanding survey layout or as-built project needs.
Tradition Meets Innovation
5″ Accuracy
Construction and Survey Application Software On Board
Best-in-Class Measuring Distance Feature
Dual Side Display Control Panel.
Reflectorless operation from 0.3m to 1000m.
IP66 – Strong Environmental Specification against Tough Sites
Integrated Bluetooth® technology
Up to 28 hours of battery life in Eco mode
Key buttons are illuminated to minimze mistakes.
Advanced security and maintainance with TSshield™
Internal memory has 50,000 points to record.
Sokkia Total Station iM105 Technical Specifications:
Model iM105 Sokkia Total Station
Telescope
Magnification / Resolving Power 30x / 2.5″
Length 171mm (6.7in.)
Objective aperture 45mm (48mm for EDM)
Image Erect
Field of View 1°30′ (26m / 1,000m)
Minimum focus 1.3m
Reticle illumination 5 brightness levels
Angle Measurement
Display Resolution 1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001 5″
Dual Axis Compensator Dual-axis liquid tilt sensor, working range: ±6′
Collimation Compensation On/Off (selectable)
Distance Measurement
Laser output (Reflectorless mode) Class 3R / Prism / sheet mode: Class 1
Range reflectorless mode 0.3 to 800m (2,620ft.) / Under good conditions*: 1,000m (3,280ft.)
Reflective sheet RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.),
RS10N-K: 1.3 to 100m (4.3 to 320ft.)
Mini Prism 1.3 to 500m (4.3 to 1,640ft.)
One Prism 1.3 to 5,000m (4.3 to 16,400ft.) / Under good conditions* : 6,000m (19,680ft.)
Display Resolution Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable)
Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable)
Accuracy Reflectorless: (2 + 2ppm x D) mm
Reflective Sheet: (2 + 2ppm x D) mm
Prism Mode: (1.5 + 2ppm x D) mm
Measuring Time
Fine Measurement Mode 0.9 sec.(Intial 1.5 sec.)
Rapid Measurement Mode 0.6 sec.(Intial 1.3 sec.)
Tracking Measurement Mode 0.4 sec.(Intial 1.3 sec.)
OS, Interface and Data Management
Operating system Linux
Display / Keyboard Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 28 keys with backlight
Control panel location On both faces
Trigger key Yes (right side)
Data storage Internal memory: Approx. 50,000 points
Plug-in memory device: USB flash memory (max. 32GB)
Interface Serial RS-232C, USB2.0 (Type A for USB flash memory)
Bluetooth® modem (option) Bluetooth Class 1.5, Operating range: up to 10m
General
Laser pointer Coaxial red laser using EDM beam
Guide light Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)
Levels Graphic 6′ (Inner Circle)
Circular Level 10’/2mm
Optical Plummet Magnification: 3x
Minimum focus: 0.5m from tribrach bottom
Dust and water protection IP66 (IEC 60529:2001)
Operatig temperature -4ºF to +122ºF (-20ºC to +50ºC)
Size with handle (w x d x h mm) 183(W)x 181(D)x 348(H)mm
Weight with battery and tribrach Approx. 5.3kg (11.7lb)
Power Supply
Battery (BDC70) Detachable battery Li-ion rechargeable battery
Operating time (20ºC) BDC70 Approx. 28 hours (single distance measurement every 30 seconds)
