Deskripsi
*General
• Weight: 8.0 lbs (3.6 kg)
• Dimensions: 5.8 in x 5.7 in x 12.0 in (14.7 cm x 14.4 cm x 30.4)
• Protection Class: IP66 (dustproof and protection against strong water jets)
• Internal Memory: 10,000 points
• Software: Nikon Survey
• Tribrach: Detachable
• Guide Light: Red LED
*Angle Measurement
• Measuring Method/Reading System: Absolute encoder
• Minimum Reading: 1-second/5-second/10-second
• Accuracy: 3-second
• Diameter of Circle: 2.4 in (6 cm)
*Distance Measurement
• Unit of Measure (distance display): m/ft
• EDM Accuracy (Precision): ±(3mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism
• Minimum Reading: 400 m (1,312 ft)
*Tilt Sensor/Compensator
• Range: ±3.5
• Type: Dual-axis
• Method: Liquid-electric detection
*Battery/Power
• Power Source: Two rechargeable Li-Ion batteries
• Battery Life: 31 hours
• Battery Life Alert: yes
• Voltage: 3.8 V DC
*Optical Plummet
• Image: Erect
• Magnification: 3×
• Field of View: 5 degrees
• Focus Range: 0.5 m (1.6 ft) to infinity
*Level
• Circular Bubble Vial: 10 minutes per division/(2 mm)
• Electronic Level: Displayed on the LCD
*Telescope
• Length of Tube: 125 mm (4.9 in)
• Image: Erect
• Diameter of Objective Lens (Aperture): 50 mm EDM (2.0 in)
• Magnification: 30x
• Field of View: 1 degree 20 arcmin
• Resolving Power: 3 arcsec
• Minimum Focus Distance: 1.5 m (4.9 ft)
• Reflectorless: yes
*Display and Keypad
• Type: Black and white LCD
• Sides: Dual
• Backlight: yes
• Pixels: 128 x 64 pixels
*Temperature
• Operating: -4°F~122°F (-20°C~50°C)
• Storage: -13°F~140°F (-25°C~60°C)
*Applications
• Surveying and Construction: yes
• Mapping and GIS (geographic information systems): yes
• Utilities: yes
• Environment Studies: yes
• Geomarking: yes
• Archaeology: yes
• Accident Reconstruction: yes
*Measurement Range (under fair weather conditions)
• Single Prism: 5,000 m (16,404 ft)
• No Prism: 400 m (1,312 ft)
• Reflector Sheet: 300 m (984 ft)
*Functions
• Coordinate Measurement Point: yes
• Angle and Distance Stake Out: yes
• Stake Out Line: yes
• Offsets: yes
• Missing Line: yes
• Remote Elevation: yes
• Resection: yes
• Area Calculation: yes
*Laser Plummet
• Class: 2
• Wavelength: 635 nm
*Interface
• Bluetooth: Class 2
• Pin Port: RS-232C

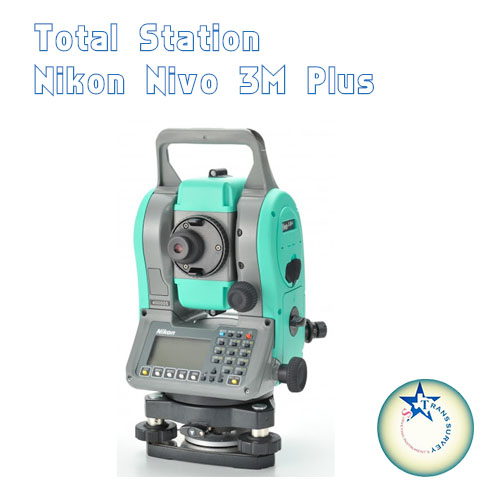

- Unit Nikon Nivo 3M
- 2 x Aluminum Tripod
- 1 x Prisma Polygon
- 1 x Range Pole
- 1 x Single Prism
- 1 x Cable Data
- 1 x Software Data
