Deskripsi
- High-speed 3D,
- 36 MP 3-camera system captures
- Speed 2‘000‘000 pts/sec
- Range 130 m Double scan Automatic removal of moving objects
- Laser Class 1 (in accordance with IEC 60825-1:2014), 1550nm (invisible)
- Field of view 360° (horizontal) / 300° (vertical)
- Accuracy 5.3 mm @ 40 m
- Wireless wireless LAN (802.11 b/g/n)
- Data storage 256GB exchangeable USB 3.0 flash drive

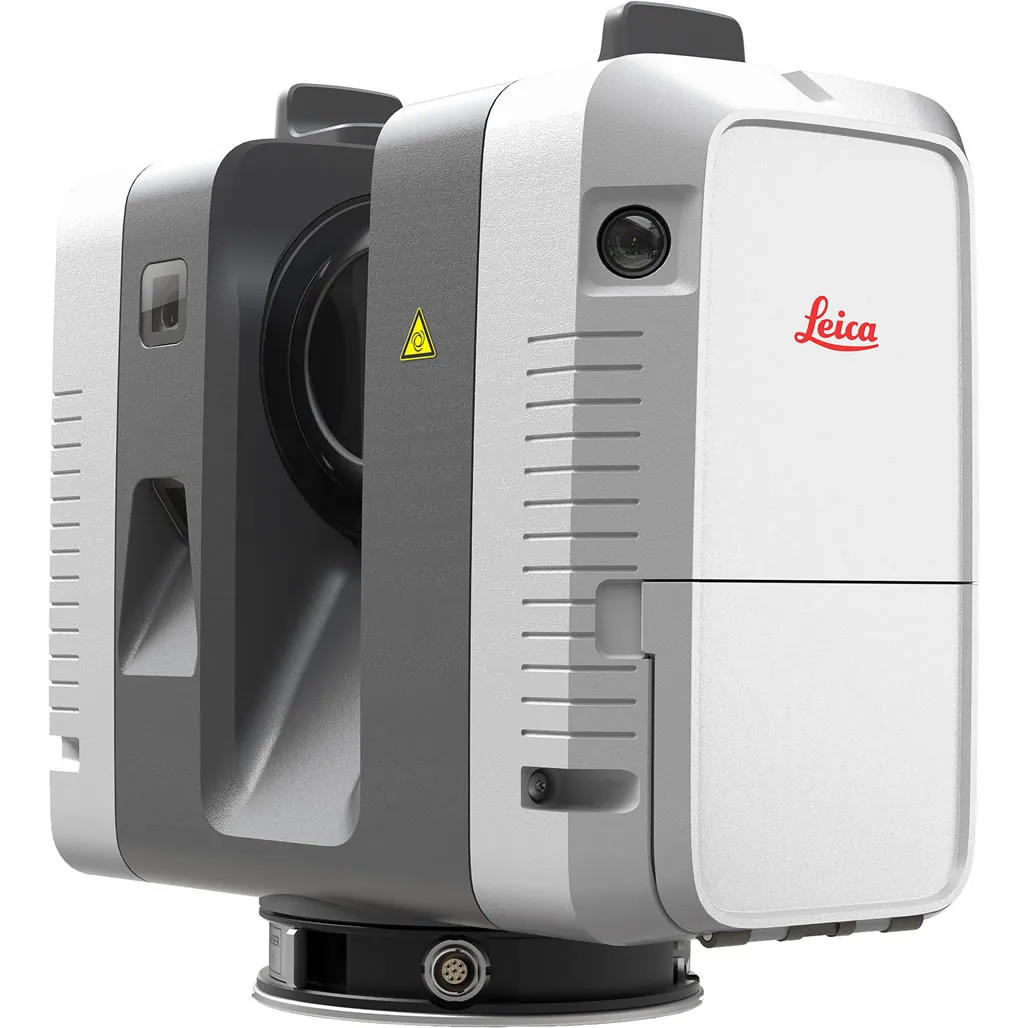

Leica RTC360 Laser Scanner
Leica RTC360 Laser Scanner ini tuh bukan cuma sekedar laser scanner biasa, tapi solusi lengkap buat nangkep realitas sekitar kita dalam bentuk 3D.
Bener-bener bikin kerja kita di lapangan dan kantor jadi lebih efisien.
Alat dan software-nya portable, gampang dipake, akurat, dan bisa dibawa kemana-mana.
Gak cuma itu, Leica RTC360 ini juga punya keunggulan lain yang bikin kita semakin cinta.
Misalnya, kita bisa nangkep scan dalam waktu kurang dari dua menit, termasuk nambahin gambar High-Dynamic Range (HDR) yang keren abis.
Proses registrasi scan juga otomatis dan cepat, jadi kita bisa fokus ke hal-hal lain yang lebih penting.
Gak percaya? Nih, fitur-fiturnya yang bakal bikin kita makin semangat buat coba:
Fitur Keren Leica Rtc360
- Cepat: Dengan kecepatan pengukuran sampai 2 juta titik per detik dan sistem HDR yang canggih, kita bisa bikin point cloud 3D berwarna dalam waktu kurang dari dua menit. Gak pake ribet!
- Fleksibel: Desain portable dan tripod yang bisa dilipat membuat Leica RTC360 laser scanner ini gampang dibawa-bawa. Masuk ke dalam tas backpack pun bisa. Pokoknya praktis banget!
- Akurat: Data yang dihasilkan bersih dan kaya detail, plus dengan dukungan software Cyclone FIELD 360 untuk registrasi otomatis di lapangan, Leica RTC360 ini punya presisi yang bisa diandalkan.
- Registrasi di Lapangan: Cyclone FIELD 360 app memudahkan kita buat nangkep, meregistrasi, dan ngecek data scan di lapangan. Bisa dibilang, ini solusi komplit buat yang baru belajar atau udah jago!
purchase package Dari Leica RTC360
Apa aja yang bisa kita dapatkan kalau beli paket RTC360 ini? Nah, kita bakal dapetin:
- Leica RTC360 Laser Scanner
- RTC360 Scan Head
- Kotak transport buat RTC360 Laser Scanner & Aksesoris
- 4 baterai Lithium-Ion
- Charger Prof 5000 buat ngecas sampai 4 baterai sekaligus
- 2 Flash Drives sebesar 256 GB
- RTC360 Rain Cover
- RTC360 Laser Scanner CCP Basic selama 1 tahun
- Kotak transport tambahan
- Baterai Lithium-Ion GEB361
- Penutup anti-hujan
- Kartu USB System
- GST80 Lightweight Tripod
- Ransel GVP730
- Adapter Tribrach GAD121
- Adapter GAD122
- Panduan cepat buat RTC360
Wah, seru banget kan? Jadi, teman-teman surveyor dan kontraktor, yuk kita coba Leica RTC360 laser scanner ini. Bakal bikin kerja kita makin asyik dan hasilnya pasti memuaskan!
Leica RTC360 Product Specifications |
|
| 3D Laser Scanner | High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real-time registration |
| Data acquisition | < 2 min for complete full-dome scan and spherical HDR image at 6mm @ 10m resolution |
| Real time registration | Automatic point cloud alignment based on real-time tracking of scanner movement between setups based on Visual Inertial System (VIS) by the video-enhanced inertial measurement unit |
| Double scan | Automatic removal of moving objects |
| Distance measurement | High-speed, high dynamic time of flight enhanced by Waveform Digitizing (WFD) technology |
| Laser Class | 1 (in accordance with IEC 60825-1:2014), 1550nm (invisible) |
| Field of view | 360° (horizontal) / 300° (vertical) |
| Range | Min. 0.5 – up to 130 m |
| Speed | Up to 2‘000‘000 pts/sec |
| Resolution | 3 user-selectable settings (3/6/12mm @ 10m) |
Accuracy * |
Angular accuracy 18”
Range accuracy 1.0 mm + 10 ppm 3D point accuracy 1.9 mm @ 10 m 2.9 mm @ 20 m 5.3 mm @ 40 m |
| Range noise * ** | 0.4 mm @ 10 m, 0.5 mm @ 20 m |
| Camera | 36 MP 3-camera system captures
432 MPx raw data for calibrated 360° x 300° spherical image |
| Speed | 1 minute for full spherical HDR image at any light condition |
| HDR | Automatic, 5 brackets |
| Visual Inertial System | Video enhanced inertial measuring system to track the movement of the scanner position relative to the previous setup in real-time |
| Tilt | IMU-based, Accuracy: 3‘ for any tilt |
| Additional sensors | Altimeter, Compass, GNSS |
| On scanner | Touch-screen control with finger touch, full-color WVGA graphic display 480 x 800 pixels |
| Mobile devices | Leica Cyclone FIELD 360 app for iPad or Android tablets including:
– Remote control of scan functions – 2D & 3D data viewing – Tagging – Automatic alignment of scans |
| Wireless | Integrated wireless LAN (802.11 b/g/n) |
| Data storage | Leica MS256, 256GB exchangeable USB 3.0 flash drive |
| Housing | Aluminum frame and side covers |
| Dimensions | 120mm x 240mm x 230mm / 4.7‘‘ x 9.4‘‘ x 9.1 |
| Weight | 5.35 kg / 11.7 lbs, nominal (w/o batteries) |
| Mounting mechanism | Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter/survey tribrach adapter available |
| Internal battery | 2 x Leica GEB361 internal, rechargeable Li-Ion batteries.
Duration: Typically up to 4 hours Weight: 340 g per battery |
| External | Leica GEV282 AC adapter |
| Operating temperature | 5° to +40° C |
| Storage temperature | 40° to +70° C |
| Operating low temperatures **** | 10° to +40°C |
| Dust/Humidity *** | Solid particle/liquid ingress protection IP54 |
