Deskripsi
Spesifikasi Yang Canggih dari GNSS Receiver RTK FOIF A90 :
Model : A90 GNSS
Channels : 800
Signals BDS: B1, B2, B3 GPS: L1CA, L1P. L1C, L2P, L2C, L5 GLOASS: G1,G2, P1, P2
GALILEO: E1BC, E5a. E5b QZSS: L1CA. L2C. L5, L1C SBAS: L1CA, L5;
L-Band Accuracy Static : H: 2.5 mm±1ppm , V: 5 mm±1ppm
RTK : H: 8 mm±1ppm, V:15 mm±1ppm
DGNSS : <0.5m ATLAS : 8cm
System Initialization Time : 8s
Initialization Reliable : 99.90%
Operating System : Linux
Merrory : 8GB, support expanable
MisroSD Wifi : 802.11 b/g/n
Bluetooth : V2.1+EDR/V4.1
Dual,Class2 E-Bubble : support
Tilt Survey : IMU Tilt Survey 60°,
Fusion Positioning/400Hz refresh rate
Datalink Audio : support
TTS audio broadcast
UHF : Tx/Rx
Internal Radio, 1W/2W adjustable, radio support 410-470Mhz
Protocol : support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
Network : 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Physical Interface : 1*TNC
Radio Antenna, 1*5Pin(Power & RS232),1*7
Pin (USB 81 RS232)
Button : 1 Power Button
Indication Light : 4
Indication Lights Size : Φ156mm * H 76mm
Weight : 1.2kg
Power supply Battery capacity : 7.2V, 24.5Wh(standard two batteries)
battery Life Timer : Static Survey: 15 hours, Rover
RTK survey: 12h
External power source : DC 9-18V, with overvoltage protection
Environment Work Temporature : -35℃ ~ +65℃ Storage
Temporature : -55℃ ~ +80℃
waterproof&dustproof : IP68
Humidity : 100% anti-condensation

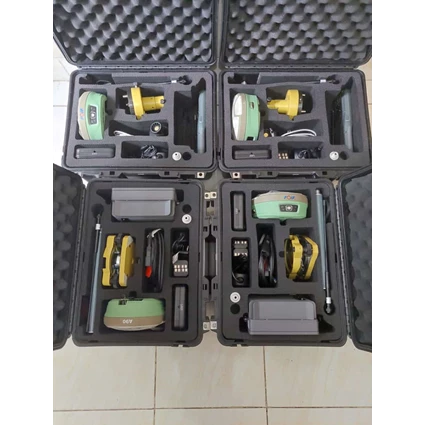

Kelengkapan :
1x Tripod 1x Range Pole 1x Controller 1x Base 1x Rover 1x Radio External
