Leica GS07
Leica Geosystems AG
Heinrich-Wild-Strasse
9435 Heerbrugg, Switzerland
+41 71 727 31 31
Copyright Leica Geosystems AG, 9435 Heerbrugg, Switzerland. All rights reserved. Printed in Switzerland – 2023.
Leica Geosystems AG is part of Hexagon AB. 870845en – 10.23

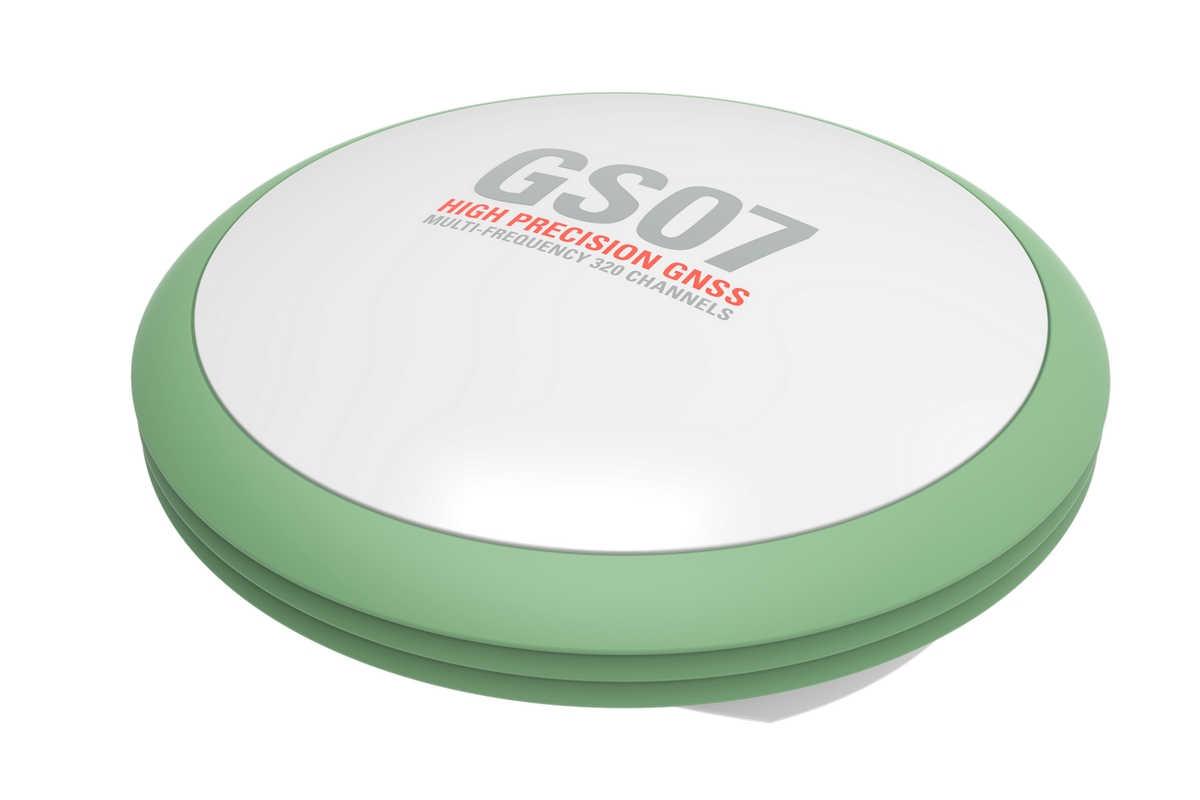

LEICA GS07 – GNSS SMART ANTENNA
SUPPORTED GNSS SYSTEMS
Multi-frequency ✔
GPS / GLONASS / Galileo / BeiDou / QZSS ✔ / ∙/∙/∙/✔
RTK PERFORMANCE
DGPS/RTCM, RTK Unlimited, Network RTK ✔
HxGN SmartNet Global ∙
POSITION UPDATE & DATA RECORDING
5 Hz positioning ✔
Raw data / RINEX data logging ✔ / ✔
ADDITIONAL FEATURES4
3.75G GSM / GPRS / UMTS / CDMA phone modem ∙
UHF radio modem (receive only) ∙
✔ Standard ∙ Optional
1 Measurement precision, accuracy, reliability and time for initialisation are dependent
upon various factors including number of satellites, observation time, atmospheric
conditions, multipath etc. Figures quoted assume normal to favourable conditions.
A full BeiDou and Galileo constellation will further increase measurement performance
and accuracy.
2 QZSS L6 will be provided through future firmware upgrade.
3 Depending on the used CS field controller and radio modem.
4 Data is recorded to the CS field controller.
5 Might vary with temperature, age of battery, transmit power of data link device.
GNSS TECHNOLOGY & SERVICES
Self-learning GNSS Leica RTKplus Adaptive on-the-fly satellite selection
HxGN SmartNet Global HxGN SmartNet Pro Network RTK and unlimited worldwide RTK bridging and PPP service
HxGN SmartNet+ Network RTK and RTK bridging service
HxGN SmartNet PPP Unlimited worldwide RTK bridging and PPP service
Leica SmartCheck Continuous check of RTK solution Reliability 99.95%
Signal tracking GPS | GLONASS L1, L2, L2C, L5 | L1, L2, L2C, L3
Galileo | BeiDou E1, E5a, E5b, AltBOC, E6 | B1I, B1C, B2I, B2a, B3I
QZSS | NavIC L1, L2C, L5, L6 2 | L5
SBAS | TerraStar WAAS, EGNOS, MSAS, GAGAN | L-Band, IP
Number of channels 320 hardware channels
MEASUREMENT PERFORMANCE & ACCURACY
1
Time for RTK initialisation Typically 6 s
Real-time kinematic
(Compliant to IS017123-8 standard)
Single baseline
Network RTK
Hz 10 mm + 1 ppm / V 20 mm + 1 ppm
Hz 10 mm + 0.5 ppm / V 20 mm + 0.5 ppm
RTK bridging Up to 10 min bridging of RTK outages Hz 2.5 cm | V 5 cm
PPP Initial convergence to full accuracy
typically 10 min, Re-convergence < 1 min
Hz 2.5 cm | V 5 cm
Post processing Static (phase) with long observations
Static and rapid static (phase)
Hz 3 mm + 0.5 ppm / V 6 mm + 0.5 ppm
Hz 5 mm + 0.5 ppm / V 10 mm + 0.5 ppm
Code differential DGPS / RTCM Hz 25 cm | V 50 cm
COMMUNICATIONS
Communication ports Lemo
Bluetooth ®
USB and RS232 serial
Bluetooth v4.1 + EDR, class 1
Communication protocols RTK data protocols
Network RTK
Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM
VRS, FKP, iMAX, MAC (RTCM SC 104)
Built-in data links
3 LTE / UMTS / CDMA phone modem
Radio modem
Fully integrated, internal antenna
Fully integrated, receive, external antenna
403 – 473 MHz, up to 28800 bps over air
External data links Bluetooth GSM / GPRS / UMTS / LTE / CDMA phone modem
GENERAL
Field controller and software Leica Captivate software Leica CS20 field controller
User interface Buttons and LEDs On / Off button, 3 status LEDs
Data recording Storage
4
Data type and recording rate
Removable SD card
Leica GNSS raw data and RINEX data at up to 5 Hz
Power management Internal power supply
External power supply
Operation time
5
Exchangeable Li-Ion battery (2.6 Ah / 7.4 V)
Nominal 12 V DC, range 10.5 – 28 V DC
8 h GNSS, 7 h receiving RTK data with CS modem
Weight and dimensions Weight
Diameter x Height
0.7 kg / 2.7 kg standard RTK rover setup on pole
186 mm x 71 mm
Environmental Temperature
Drop
Proof against water, sand and dust
Vibration
Humidity
Functional shock
-40 to 65°C operating, -40 to 80°C storage
Withstands topple over from a 2 m survey pole onto hard surfaces
IP66 / IP68 (IEC60529 / MIL STD 810G CHG-1 510.6 I / MIL STD 810G CHG-1
506.6 II / MIL STD 810G CHG-1 512.6 I)
Withstands strong vibration (ISO9022-36-05 / MIL STD 810G 514.6 Cat.24)
95% (ISO9022-13-06 / ISO9022-12-04 / MIL STD 810G CHG-1 507.6 II)
40 g / 15 to 23 msec (MIL STD 810G 516.6 I
