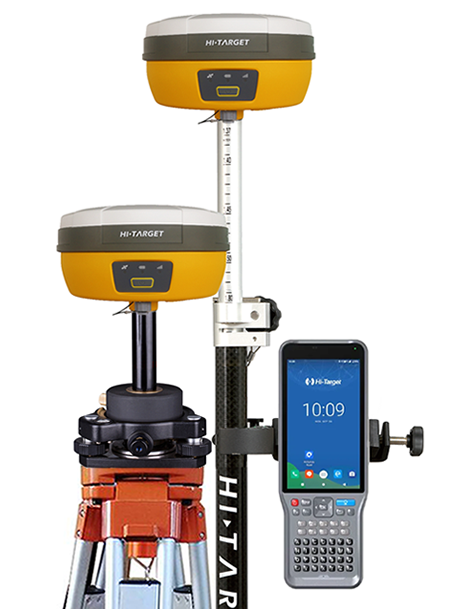

Spesifikasi Hi-Target V30 Plus GNSS RTK
Type
Land
Year of initial introduction
2019
Height [m]
0.0835
Width [m]
0.164
Total Weight [kg]
≤1.4kg
Housing Material
Magnesium alloy
Internal power supply
5000mAh
External power supply
6-28V DC
Operating power: min. [V]
6
Operating power: max. [V]
28
Typical consumption [W]
4.2
Operating time with internal power supply [hr]
10
Certifications
CE
Rechargeable with (auto)battery
Yes
Operating temperature: min. [°C]
-45
Water sand and dust proof
IP67
Operating temperature: max. [°C]
75
Humidity resistance
100%, condensing
Shock and vibration proof
Designed to survive a 2m natural fall onto concrete
Tracked satellite signals
GPS: L1, L2, L5 BDS: B1, B2, B3 GLONASS: L1, L2 Galileo: E1, E5a, E5b
SBAS differential signals
L1; QZSS: L1, L5
No. channels
440
Max. simultaneous tracked channels
440
Type of measurements
C/A; P code; CP
RTK Network Compatibility
Yes
MRS functionality
Yes
phase: RTK rapid static (constant part) [m]
0.0025
phase: RTK rapid static (variable part) [ppm]
0.5
phase: RTK kinematic (constant part) [m]
0.008
phase: RTK kinematic (variable part) [ppm]
1
RTK network solution methods
VRS
Memory medium
Internal storage
Data capacity [MB]
8192
Type of data (on board recording)
GNS and Rinex
Data input
CMR, RTCM2.X, RTCM3.0, RTCM3.2
Bluetooth
Y
Communication ports
SD Card, USB, SIM card port, WiFi, Radio, GSM, TNC port, 5-pin port
Simultaneous links
Y
GSM; UMTS phone modems
4G cellular mobile network (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM)
Radio modems
Internal UHF transceiver radio: Transmitting power: 1W/2W/4W adjustable. Frequency: 403MHz~473MHz, Protocols：HI-TARGET，TRIMTALK450S，TRIMMARK III，TRANSEOT，SATEL-3AS, etc..External Radio: Transmitting power: 5W/25W adjustable. Frequency: 410MHz~470MHz, Protocols：TRIMTALK450S，TRIMMARK III，TRANSEOT
RTCM standards for differential data
RTCM 2.x, RTCM 3.0, RTCM 3.2
CMR standards for differential data
CMR
NMEA output format
ASCII: NMEA-0183
