Product Description

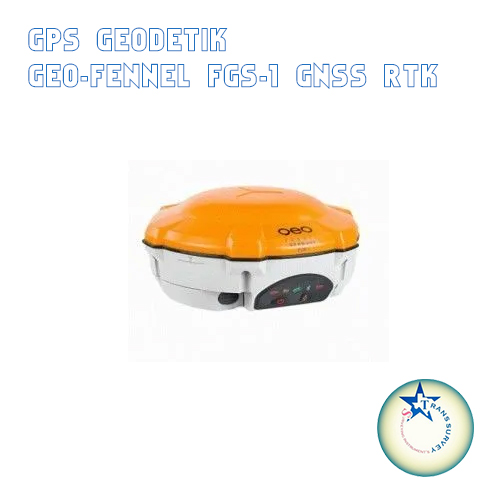

Geo Fennel FGS 1 Gps Geodetik RTK
Unique GPS Set for multipurpose applications
The FGS 1 can track all current working GNSS constellations. By using a unique algorithm it can operate in RTK mode combining all GNSS constellation signals or by using a single GNSS constellation signal such as GLONASS or BeiDou. The strong anti-interference ability of the receiver makes it possible to work in any environment. The FGS 1 integrates a cutting edge GNSS board, Bluetooth®, optional UHF (Rx & Tx) into a compact system. The smart design positions the FGS 1 among the lightest and most compact receivers currently available. The system is open to third party applications and supported by MicroSurvey FieldGenius and Carlson Surv-CE field applications.
The geo-FENNEL FGS 1 is a robust receiver designed for challenging environments integrated into a compact device that is lightweight and highly portable.
Features Geo Fennel FGS 1 Gps Geodetik RTK :
- High speed processing
- Support for both post-processing and kinematic
- Processing ability separate or to be combined with GPS, GLONASS and BeiDou
- Supports downloads & use of precise ephemeris
- Generation of various reports
- User friendly
Spesifikasi Geo Fennel FGS 1 Gps Geodetik RTK :
- Signal Tracking
- 256 channels with simultaneously tracked satellite signals :
- GPS L1 C/A, L1/L2P, L5
- GLONASS L1/L2
- BeiDou B1, B2, B3
- Galileo Yes, but not activated
- SBAS WAAS, EGNOS, MSAS
- Performance Specifications
- Cold start : <50s
- Warm start : <30s
- Initialization time typically : <10s
- Initialization reliability typically : >99,9%
- Signal reacquisition : <2s
- Positioning Specifications
- Post processing static :
- horizontal 2,5 mm + 0,5 ppm RMS
- vertical : 5,0 mm + 0,5 ppm RMS
- Real time kinematic :
- horizontal : 8 mm + 0,5 ppm RMS
- vertical : 20 mm + 0,5 ppm RMS
- E-RTK (<100 km) :
- horizontal : 0,20 m + 1 ppm RMS
- vertical : 0,40 m + 1 ppm RMS
- Code differential GNSS positioning :
- horizontal : 0,25 m + 1 ppm RMS
- vertical : 0,50 m + 1 ppm RMS
- SBAS typically <1 m 3D RMS
- Stand-Alone : <1,5 m RMS
- Communication
- 1 Serial port (7 Pin Lemo), Baud rates up to 921 600 bps
- Radio modem (optional) Tx/Rx with full frequency rang from 410 – 470 MHz
- transmit power : 0.5 – 2W adjustable
- Positioning update rate : 1 Hz, 2 Hz, 5 Hz, 10 Hz
- 5 LED Indicating lights Power, satellite tracking, differential data and data recording
- Bluetooth®; V 2.X protocol, work compatible with Windows 7®, Windows mobile® and Android®
- Data Format
- Data inputs / outputs
- Correction data I/O RTCM 2.x, 3.x, CMR & CMR+ (GPS only)
- Position data outputs
- ASCII NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL
- geo-FENNEL Binary update to 20 Hz
| GPS SYSTEM FGS 1 NETWORK-SET | GPS SYSTEM FGS 1 COMPLETE SET |
