Deskripsi

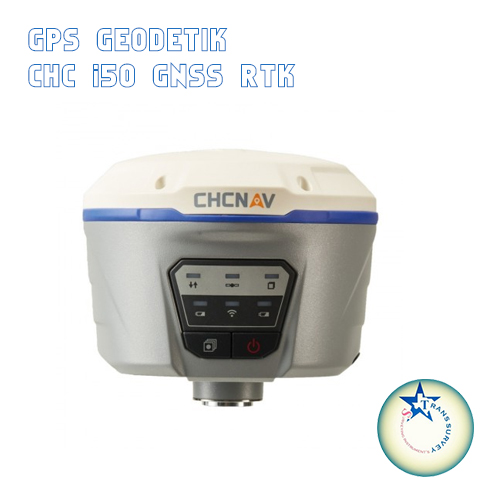

SPESIFICATIONS GPS GEODETIK CHC NAV I50
● 634 Channels Full GNSS
● Extended Connectivity
● Flexible Work Modes
● Rugged and Compact
● Extra Power
Type Land
Year of initial introduction 2018
Height [m] 0.106
Depth [m] 0.14
Width [m] 0.13Total weight [kg] 1.29POWER
Operating power: min. [V] 7.4
Operating power: max. [V] 36
Typical consumption [W] 4.2
Internal power supply 7.4
External power supply 9 – 36
Operating time with internal power supply [hr] 12
Certifications CEENVIRONMENTOperating temperature: min. [°C] -40
Operating temperature: max. [°C] 65
Humidity resistance 95%
Water sand and dust proof IP67
Shock and vibration proof 2-meter pole drop
PERFORMANCE
No. channels 432
Tracked satellite signals GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
SBAS differential signals L1
Type of measurements RTK, PPK, Static
Reacqisition time [s] <1s
RTK Network Compatibility >99.9%
