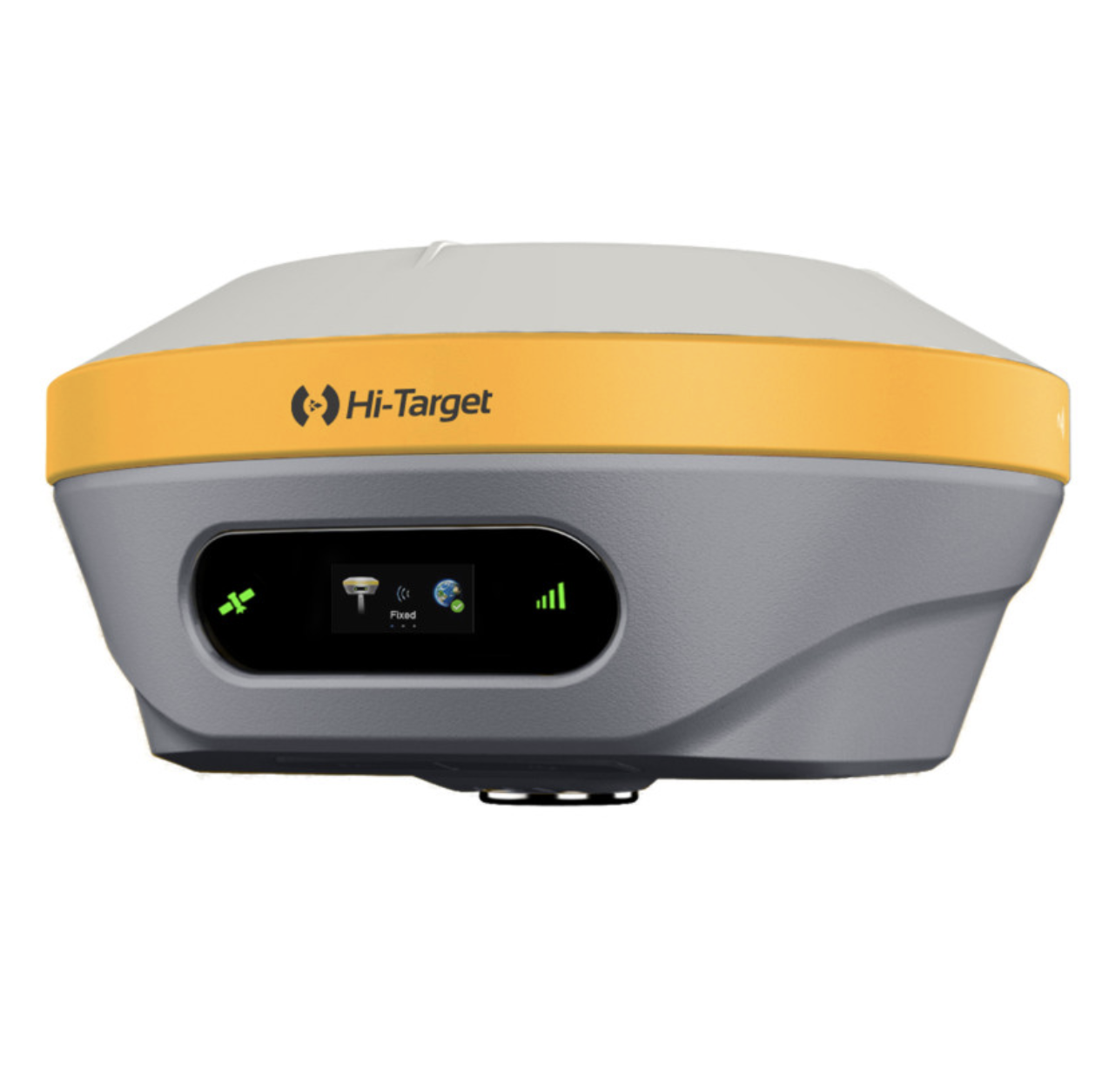

Distributor Gps Geodetik GNNS Hi Target iRTK4/iRTK5

Kategori:

Deskripsi

Description

Hi-Target iRTK4 GNSS RTK System dapat memanfaatkan Tilt-Surveying tanpa kalibrasi, tanpa meratakan tiang survei untuk mengumpulkan data titik di lebih banyak tempat.

Anda hanya perlu 50 menit untuk mengisi daya baterai hingga 50 persen saat menggunakan adaptor 45 watt,

Fitur Hi-Target iRTK4

Specifications Hi-Target iRTK4 GNSS RTK System

GNSS TECHNOLOGY iRTK4 Internal UHF Radio
Channels: 800+ Frequency: 403-473MHz
GPS: L1/L2/L5/L2C Channels: 116 (16 scalable)
GLONASS: L1/L2/L3 Transmitting power: 1~4W Hi-Target Advanced Radio Supports multiple protocols:
HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SATEL-3AS, etc.
BDS: B1/B2/B3/B1C/B2a
Galileo: E1/E5 AltBOC/E5a/E5b/E6 Working Range: Typically 3~5km, optimal 5~8km
SBAS: L1/L5
QZSS: L1/L2/L5/L6 External UHF Radio
IRNSS: L5 External HDL460A Full Protocols Radio
Global correction service: Hi-RTP (optional) Frequency: 403-473MHz
Channel: 116 (16 scalable)
POSITIONING PERFORMANCE Transmitting power: 10W/35W adjustable
High-precision static GNSS Surveying Protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, etc.
Horizontal: 2.5mm + 0.1ppm RMS Working Range: Typically 8~10km, optimal 15~20km
Vertical: 3.5mm + 0.4ppm RMS
Data Formats
Static and Fast Static Output Rate: 1Hz-20Hz
Horizontal: 2.5 mm + 0.5 ppm RMS Static data format: GNS, Rinex
Vertical: 5 mm + 0.5 ppm RMS Network model: VRS, FKP, MAC; supports NTRIP protocol
CMR& RTCM: CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2
Post Processing Kinematic (PPK / Stop & Go) Navigation Outputs ASCⅡ: NMEA-0183
Horizontal: 8mm+1ppm RMS
Vertical: 15mm+1ppm RMS PHYSICAL
Initialization time: Typically 10 min for base and 5 min for rover Internal Battery
Initialization reliability: Typically > 99.9% Internal 7.4V/6800mAh lithium-ion rechargeable battery.
Charging: supports USB PD3.0quick charge, Quick charge within 3.5 hours.
Code Differential GNSS Positioning RTK Rover (Network) for 10 hours.
Horizontal: 25cm+1ppm RMS
Vertical: 50cm+1ppm RMS External Power
SBAS: 0.5m(H), 0.85m(V) 7-28V DC external power input (5-pin port) with over-discharge protection
Power Consumption: 4.2W Support Power Bank charging.
Real Time Kinematic (RTK) Dimensions (W×H): 156mm×77mm
Horizontal: 8mm+1ppm RMS Weight: ≤1.2kg (includes battery)
Vertical: 15mm+1ppm RMS Data storage: 8GB ROM internal storage
Hi-Fix Control Panel
Horizontal: RTK + 10 mm/minute RMS Physical Button: 2
Vertical: RTK + 20 mm/minute RMS LED Lamp: Satellite, Signal
Tilt Survey Performance Environment
8 mm +0,7mm / ° kemiringan (akurasi 2,5 cm pada kemiringan 60°) Water/Dustproof: IP68
Shock and Vibration: Designed to survive a 2m natural fall onto concrete
HARDWARE iRTK4 Humidity: 100%, condensing
Communication Operation Temperature: -30℃~+70℃
Bluetooth 4.2/2.1+EDR, 2.4GHz Storage Temperature: -40℃~+80℃
Network Communication:
4G cellular mobile network (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM) I/O Interface
WiFi frequency is 2.4G, support 802.11b/g/n protocol. USB port, Type C, OTG function
SMA antenna connector
DC power input (5-pin)
Nano SIM card slot
