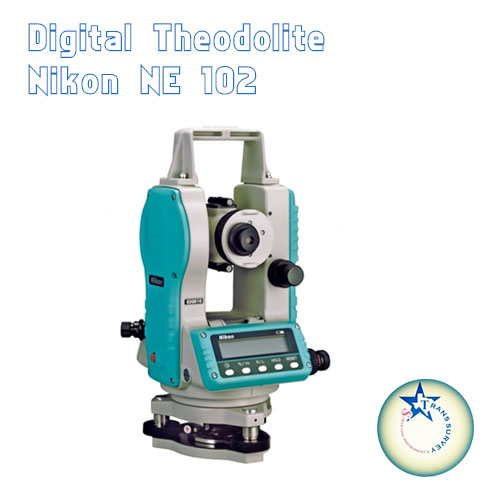

Cari Digital Theodolite Nikon NE 102 Harga Termurah

Pesan Via WhatsApp

Kategori: Theodolite

Deskripsi
Ulasan (0)

Deskripsi

Dirancang untuk aplikasi konstruksi dan penyelidikan umum, Theodolite Nikon NE-102 Series theodolites digital elektronik dari TDS memberikan pengukuran yang akurat dalam, terjangkau, mudah digunakan platform. Theodolite Nikon NE-102 theodolites Seri dapat berjalan 48 jam di bawah kondisi operasi normal pada set enam baterai alkaline AA. Masing-masing dari empat model memiliki keypad ergonomis dengan tombol sekali sentuh untuk semua fungsi dan besar, layar LCD backlit membantu Anda bekerja secara produktif di lapangan.

Fitur Utama Theodolite Nikon NE-102

Spesifikasi – Digital Theodolite Nikon NE 102

NE-102	NE-103
TELESCOPE
Effective diameter of objective:	1.77 in (45 mm)	1.77 in (45 mm)
Magnification:	30x	30x
Image:	erect	erect
Field of view:	1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m)	1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m)
Minimum focusing distance:	2.3 ft (0.7 m)	2.3 ft (0.7 m)
Stadia multiplier constant:	100	100
Stadia additive constant:	0	0
Reticle illuminator:	provided	provided
ANGLE MEASUREMENT
Reading system:	photoelectric incremental encoder	photoelectric incremental encoder
Circle diameter:	3.1 in (79 mm)	3.1 in (79 mm)
Unit of reading:	degree / gon / mil	degree / gon / mil
Minimum digital reading¹:	5/10″, 1/2 mgon, 0.02/0.05 mil	5/10″, 1/2 mgon, 0.02/0.05 mil
Accuracy (DIN 18723)	5″ / 1 mgon	5″ / 1 mgon
AUTOMATIC VERTICAL COMPENSATOR	—
Type:	—	liquid-electric detection
Working range:	—	±3′ (out-of-range warning provided)
	NE-102	NE-103
DISPLAY/KEYPAD
Front
Type:	dot-matrix LCD (20 characters x 2 lines)	dot-matrix LCD (20 characters x 2 lines)
Backlight:	1-level illumination	1-level illumination
Keypad:	5 buttons	5 buttons
Rear
Type:	dot-matrix LCD (20 characters x 2 lines)	dot-matrix LCD (20 characters x 2 lines)
Backlight:	1-level illumination	1-level illumination
Keypad:	5 buttons	5 buttons
OPTICAL PLUMMET
Magnification:	3x	3x
Field of view:	5°	5°
Focus range:	1.6 ft (0.5 m) to infinity	1.6 ft (0.5 m) to infinity
LEVEL SENSITIVITY
Plate level:	30″ / 2 mm	30″ / 2 mm
Circular level:	10′ / 2 mm	10′ / 2 mm
	NE-102	NE-103
LEVELING BASE
Type:	detachable	detachable
AMBIENT TEMPERATURE RANGE	-4 TO 122 °F (-20 to 50 C)	-4 TO 122 °F (-20 to 50 C)
ENVIRONMENTAL RATING	IP56	IP56
	NE-102	NE-103
DIMENSIONS
Instrument:	6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm)	6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm)
WEIGHT
Instrument:	9.9 lbs (4.5 kg)	10.1 lbs (4.6 kg)
Carrying case:	8.6 lbs (3.9 kg)	8.6 lbs (3.9 kg)
POWER SUPPLY
Battery type:	1.5V AA Alkaline x 6	1.5V AA Alkaline x 6
Continuous operating time (at 68 °F / 20C)	48	48 hrs
