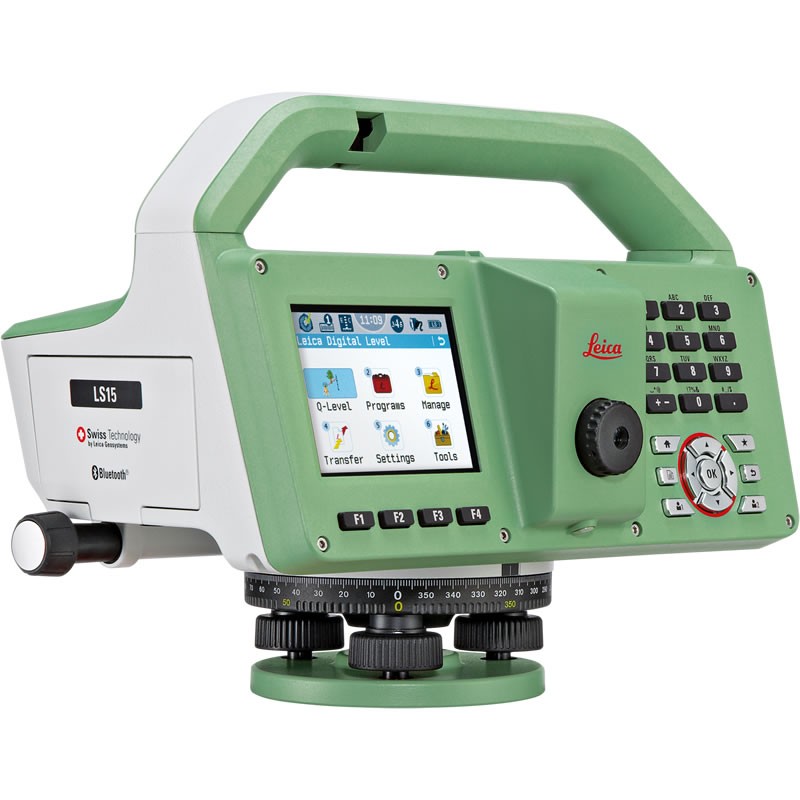

DIGITAL LEVEL LEICA LS15

Pesan Via WhatsApp

Kategori: Digital level

Deskripsi
Ulasan (0)

Deskripsi

Leica LS15 achieves all project steps, simplifying demanding tasks associated with the levelling process. 0.2 mm accuracy is accomplished by aiming at the target with the use of the colour touch display and pressing the measuring control. Features such as an electronic bubble, autofocus and tilt checks prior to each measurement help to reduce measuring professionals’ fatigue over a day’s work, reducing the risk of human-based errors.

Automated functions and industry-leading 0.2 mm accuracy to standard Invar staffs deliver unmatched reliability. Precision begins by using the electronic level bubble to set up instruments. After one button press, automatic tilt checks are made prior to each measurement. Integrated autofocus not only finds your target faster, it increases measurement accuracy by maximising contrast of the staff.

field experience of Leica LS digital levels does not finish in the field. After easily transferring your data to the office via a USB or Bluetooth®, Leica Infinity processes your results hassle-free back in the office. This intuitive software enables easy-tounderstand displays of complex levelling data. Combine tables with graphics or even cross check project data in one window for one overall view of level lines, line calculations or adjustments.
Features :

0.2 mm accuracy even with standard Invar staffs
Electronic level bubble for perfect instrument setup
Tilt check prior to each measurement
Autofocus for maximal contrast of staffDigital camera enables fast and accurate staff sighting
Streamline levelling processes with just
one push of a button
Fast and easy data transfer using USB and Bluetooth® connectivity
Visualisation of level lines in the field and in the office
Screenshots document site and field results
Step-by-step display guidance for levelling line flows
Display: 3.6 inches, QVGA, colour, touch
Telescope magnification: 32x
Minimum focusing distance: 0.6 m
Weight (including battery): 3.7kg
Internal battery / operating time: Exchangeable Lithium-Ion / 12 h
Working temperature range: -20 °C to +50 °C
Dust / Water (IEC 60529): IP55
Humidity: 95%, non-condensing

Specifications :

Height Accuracy using standard Invar staff : 0.3 mm
Height Accuracy using standard staff:1.0 mm
Distance Accuracy: 15 mm at 30 m
Measurement Minimum Range: 1.8 m
Measurement Maximum Range: 110 m
Measurement Time: Typically 2.5 sec
Autofocus working range: 1.8 m to infinity
Autofocus time to focus: Typically 4 sec
Camera field of view: 6° x 4.8° (7.7° diagonal)
Camera frame rate: Up to 20 frames per second.
Camera focus: 3 m to infinity.
Digital Compass Accuracy: 3 gon / 2.7°
Compensator working range: ± 10‘
Compensator Magnetic field sensitivity: ≤ 1″
Bluetooth®: Yes
Mini USB: Yes
Internal memory: 30,000 measurements
USB stick:Yes
Display: 3.6 inches, QVGA, colour, touch
Telescope magnification: 32x
Minimum focusing distance: 0.6 m
Weight (including battery): 3.7kg
Internal battery / operating time: Exchangeable Lithium-Ion / 12 h
Working temperature range: -20 °C to +50 °C
Dust / Water (IEC 60529): IP55
Humidity: 95%, non-condensing

Beli DIGITAL LEVEL LEICA LS15 , dengan harga ekonomis Gratis biaya pengiriman wilayah Tangerang dan dapat dikirim keseluruh Indonesia. Dapatkan hanya di toko online transsurvey.id belanja online mudah dan aman.
