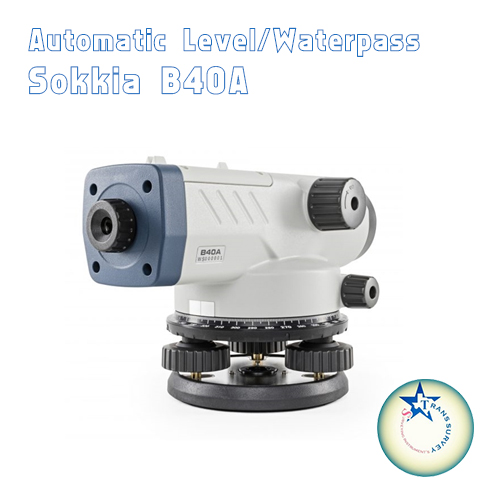

Jual-Beli Automatic Level SOKKIA B40A

Deskripsi

SPESIFIKASI
Telescope
Lenght	214mm (8.42in.)
Magnification	24x
Objective Aperture	32mm (1.26 in.)
Resolving Power	4″
Field of View (at 100m/328ft.)	1°25’ (2.5m / 8.2ft.)
Minimum Focus	0.2m (7.9 in.) from end of telescope 0.3m (1ft.) from instrument center
Image	Erect
Reticle Pattern	Cross line
Stadia Constant	0
Stadia Ratio	100
Focusing Knob	1-speed
Sighting Aid	Gun Sight
Accuracy (1km double run leveling)
Without Micrometer	2.0mm (0.08 in.)
With Micrometer	n/a
Compensator
Type	Pendulum compensator with magnetic damping system
Setting Accuracy	0.5″
Working Range	±15′
Sensitivity	10′ / 2mm
Horizontal Circle
Diameter	99mm (3.9in.)
Minimum Division	1°/ 1gon
Water Resistance	IPX6 (IEC 60529:2001)
Operating Temperature	-20 to +50ºC (-4 to +122°F)
Dimension	130 x 214 x 135 mm
Weight	1.5kg (3.3lbs.)
