Deskripsi

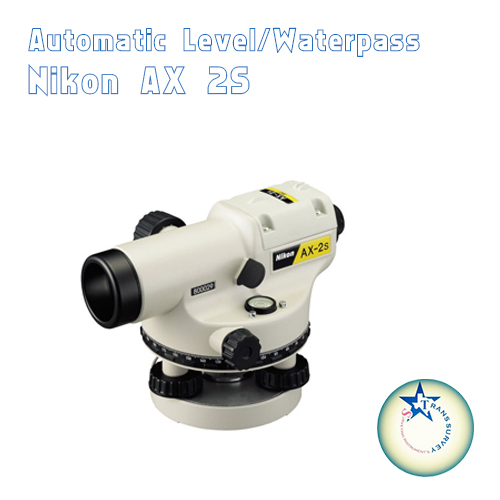

Spesifikasi Automatic Level Nikon AX-2S
- Magnification: 20 x
- Accuracy*: ± 2.5 mm
- Aperture: 30 mm
- Shortest focus: 0.75 m
- Compensator : Magnetic dampened
Automatic Level Nikon AX-2S yang kompak dan ringan dengan konstruksi kedap air. Ini fitur kompensator otomatis magnetik-dibasahi. Tombol-tombol singgung horizontal memungkinkan untuk rentang terbatas dan halus, tepat menunjuk
Beli Automatic Level Nikon AX-2S dan lengkapi peralatan pengukuran, penelitian atau pekerjaan survey anda dengan Alat ukur Waterpass NIKON, Harga kompetitif Tentunya Gratis antar untuk Area Jakarta dan dapat dikirim keseluruh Indonesia, Jika membutuhkan penawaran harga hubungi sales kami
AX-2S | AC-2S | AP-8 | |
---|---|---|---|
TELESCOPE | |||
Tube length: | 7.5 in (190 mm) | 7.5 in (190 mm) | 7.5 in (190 mm) |
Image: | erect | erect | erect |
Effective diameter of objective: | 1.2 in (30 mm) | 1.2 in (30 mm) | 1.2 in (30 mm) |
Magnification: | 20x | 24x | 28x |
Resolution power: | 4.5″ | 3.5″ | 3.5″ |
Field of view: | 1°30′ (2.6 ft @ 100 ft) | 1°30′ (2.6 ft @ 100 ft) | 1°30′ (2.6 ft @ 100 ft) |
Minimum focusing distance: | 2.46 ft (0.75 m) | 2.46 ft (0.75 m) | 2.46 ft (0.75 m) |
Stadia ratio: | 1:100 | 1:100 | 1:100 |
Stadia additive constant: | +10 cm | +10 cm | +10 cm |
LEVEL VIAL SENSITIVITY | |||
Circular level: | 10′ / 2 mm | 10′ / 2 mm | 10′ / 2 mm |
STANDARD DEVIATION | |||
per 1-km double-run leveling: | ±1.5 mm | ±1.5 mm | ±1.5 mm |
AX-2S | AC-2S | AP-8 | |
AUTOMATIC COMPENSATOR | |||
Type: | wire-hung, magnetic damper | wire-hung, magnetic damper | wire-hung, magnetic damper |
Compensation range: | ±16′ | ±16′ | ±16′ |
Setting accuracy: | ±0.5″ | ±0.5″ | ±0.5″ |
HORIZONTAL CIRCLE | |||
Diameter of circle: | 4.3 in (110 mm) | 4.3 in (110 mm) | 4.3 in (110 mm) |
Minimum increment: | 1° / 1 g | 1° / 1 g | 1° / 1 g |
Scale reading (direct): | 1° / 1 g | 1° / 1 g | 1° / 1 g |
Reading by estimation: | 0.1° / 0.1 g | 0.1° / 0.1 g | 0.1° / 0.1 g |
DIMENSIONS | |||
Instrument (L X W X H): | 7.5 x 5.0 x 4.8 in (190 x 128 x 123 mm) | 7.5 x 5.0 x 4.8 in (190 x 128 x 123 mm) | 7.5 x 5.0 x 4.8 in (190 x 128 x 123 mm) |
Carrying case (L X W X H): | 11.5 x 6.7 x 6.4 in (292 x 170 x 163 mm) | 11.5 x 6.7 x 6.4 in (292 x 170 x 163 mm) | 11.5 x 6.7 x 6.4 in (292 x 170 x 163 mm) |
AX-2S | AC-2S | AP-8 | |
WEIGHT | |||
Instrument: | 2.8 lbs (1.25 kg) | 2.8 lbs (1.25 kg) | 2.8 lbs (1.25 kg) |
Carrying case: | 2.7 lbs (1.2 kg) | 2.7 lbs (1.2 kg) | 2.7 lbs (1.2 kg) |
- 1 x Unit Automatic Level Nikon AX-2S
- 1 x Alumunium Tripod
- 1 x Levelling staff / Rambu Ukur
- 1x Sertikat Kalibrasi
- 1x K. Garansi
Beli Automatic Level Nikon AX2S , dengan harga ekonomis Gratis biaya pengiriman wilayah Jakarta dan dapat dikirim keseluruh Indonesia. Dapatkan hanya di toko online transsurvey.id belanja online mudah dan aman.
